Manufacturers Selling 65Mn High Tensile Wear-Resistant Mining Sieve Screen Mesh For Mining

Brand Name : GX

Model Number : GX-mining

Certification : ISO9001

Place of Origin : Hebei, China

MOQ : 100 Square Meter

Price : 1 - 9 square meters, US$14.00; 10 - 49 square meters, US$8.00; >= 50 square meters, US$5.00

Payment Terms : L/C, T/T, Western Union, D/A, D/P

Supply Ability : 20000 Square Meter/Square Meters per Day

Delivery Time : 15-25 days

Packaging Details : by pallets

Contact Now

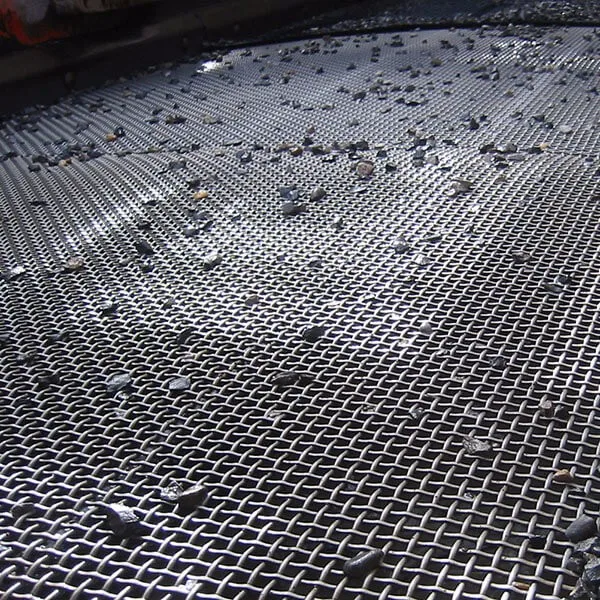

Vibrating Screen Mesh is available in different wire diameters, mesh opening and open area. This is widely used for various applications such as screening, sizing, grading, shifting, separating, scalping and washing. This wire mesh can be also custom designed in case plungers and vibrating rods are needed to insert for protection against tearing. It is installed above rubber beads to avoid metal to metal contacts.

Products Show

Manufacturers Selling 65Mn High Tensile Wear-Resistant Mining Sieve Screen Mesh For Mining

Products Specification

Name	Vibrating Screen Mesh
High carbon steel	65Mn,45#,50#,55#,60#,70#,,72A
Wire diameter	0.8mm-12.7mm,Our finished wire is inspected by third party SGS,Tolerance+_0.03mm .
Aperture/Opening	2mm to 100mm,tolerance +-3%

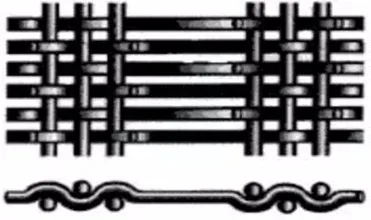

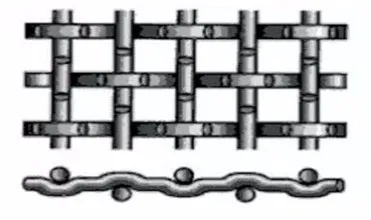

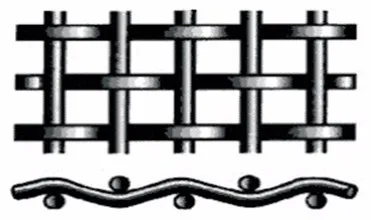

Weaving Patterns

Being pressed and then weaved.weave and crimping methods include plain/tabby weave,twilled weave,bidirectional intermediate crimp,tightened lock crimp,flat top crimp,bidirectional crimp,unilateral crimp,double crimped, single crimped,etc.It's sturdy in structure.

Double-Crlmp

Lock-Crlmp

Flat-Top

Trl-Loc

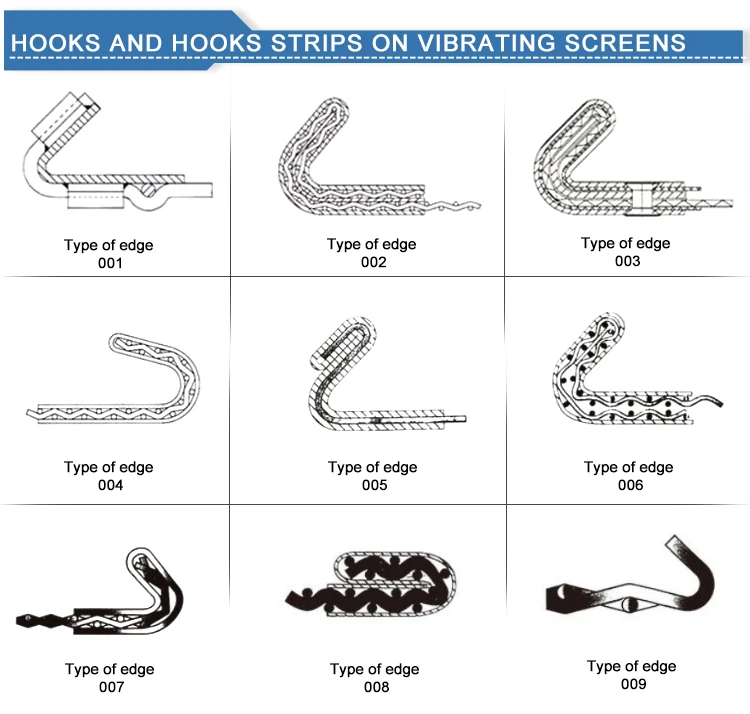

Hooks and hooks strips on vibrating screens
